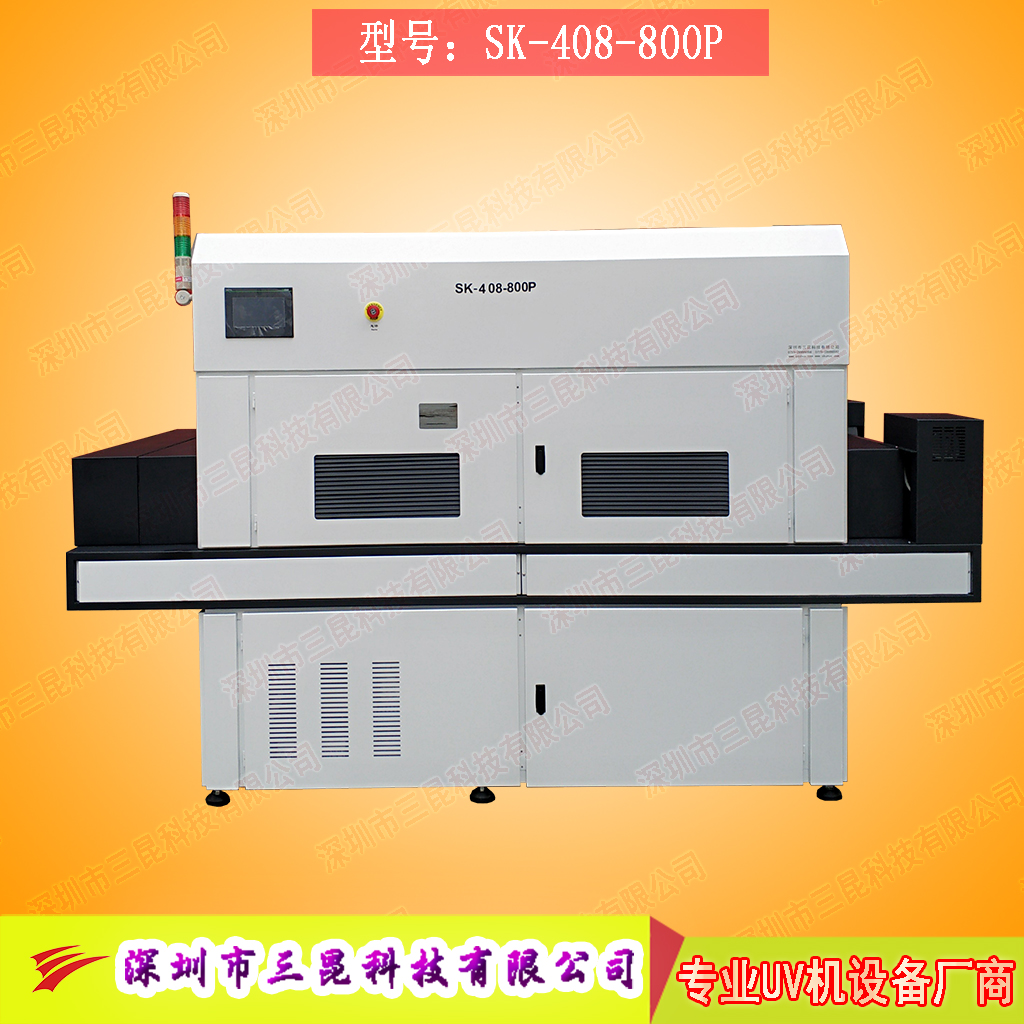

【線路板油墨uv固化機】用于PCB行業的油墨固化和綠油固化SK-408-800P

品牌：SunKun(三昆)

型號：SK-408-800P

訂購：不限數量

價格：面議

⒈訂購熱線：13823369867(李先生)
1753480168
⒉業務咨詢：13913507139(黃永貴)
2851085006



⒈市場部：13510246266(黃總經理)
289604232

1、UV燈功率:8.0kw*4支(UV鹵素燈)
2、UV燈總長:900mm、弧長:800mm
3、UV波段主波峰:365nm、380nm
4、人機界面觸摸屏控制
5、強弱光強調節:20%~100%(無級調光)
6、鈑金燈箱安裝進口插片反射器
7、采用上排風系統
8、輸送材料:不銹鋼網帶間距穿不銹鋼軸
9、輸送寬度:800mm
10、輸送速度:1~10m/min(變頻器調速)
11、入口高度:50mm
12、輸送方向:操作面從右到左
13、電源:380VAC 50HZ

1, UV lamp power: 8.0kw * 4 (UV halogen lamp)
2, the total length of the UV lamp: 900mm, arc length: 800mm
3, UV band main peak: 365nm, 380nm
4, man-machine interface touch screen control
5, strong and weak light intensity adjustment: 20% ~ 100% (stepless dimming)
6, sheet metal light box installation of imported insert reflector
7, using the upper exhaust system

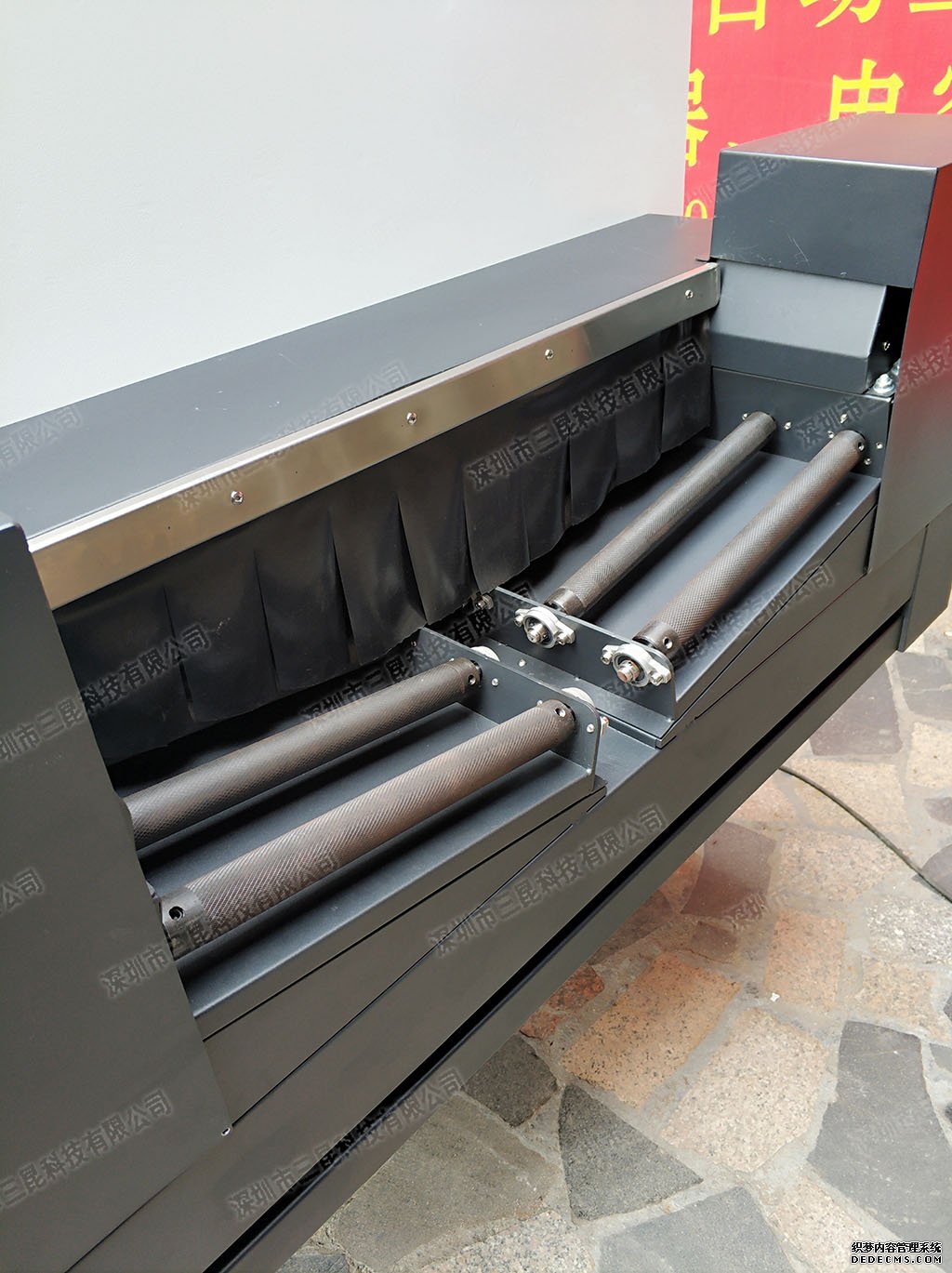

8, conveying materials: stainless steel mesh belt spacing wear stainless steel shaft
9, conveying width: 800mm
10, conveying speed: 1~10m/min (frequency converter speed regulation)
11, the entrance height: 50mm
12, conveying direction: operating surface from right to left
13, power: 380VAC 50HZ

紫外線固化技術（簡稱UV技術），被認為是一種環境友好的綠色技術，亦稱3E技術，即節能（energy）、環保（environment）、經濟（economy），

主要應用于涂料、油墨、膠粘劑等領域。其中紫外線固化UV膠廣泛應用于玻璃制品與珠寶業、玻璃家俱、醫療器具、電子、電器、光電子、光學儀器、制造等領域，如電子線路板、電子元器件、數碼相機、電子稱制造、蜂鳴片等產品的制造。想了解更多相關信息，可以咨詢深圳市三昆科技有限公司，謝謝！

UV curing technology (referred to as UV technology) is considered to be an environmentally friendly green technology, also known as 3E technology, namely energy, environment, economy, mainly used in coatings, inks, adhesives, etc. field. Among them, UV-curable UV
adhesives are widely used in glass products and jewelry, glass furniture, medical appliances, electronics, electrical appliances,
optoelectronics, optical instruments, manufacturing, etc., such as electronic circuit boards, electronic components, digital cameras, electronic scale manufacturing, bees. The manufacture of products such as film. For more information, you can consult Shenzhen Sankun Technology Co., Ltd., thank you!
